LCD Modules

Liquid Crystal Module (LCM), also known as Liquid Crystal Module (LCM), is a core component of modern electronic display devices. The image display functions of

smartphones, computer monitors, TVs, smartwatches, industrial control screens, and other devices we interact with daily rely on LCM. Simply put, an LCM is a

functional module that integrates a liquid crystal panel (LCD panel) with driver circuitry, backlighting systems, and structural components. It receives video signals

from the motherboard (or other signal sources) and converts them into visible images.

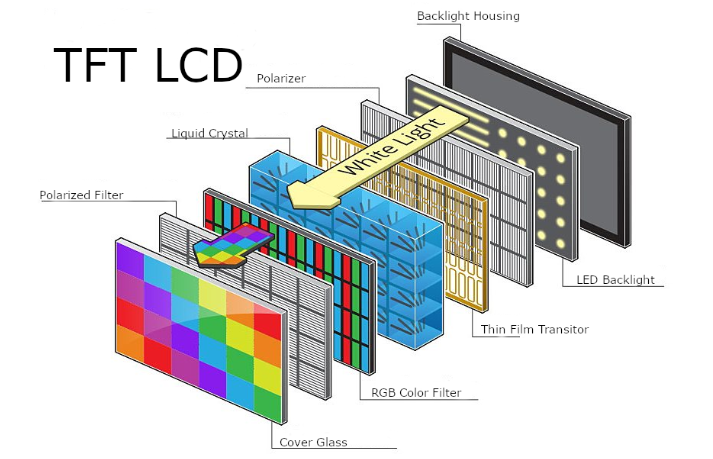

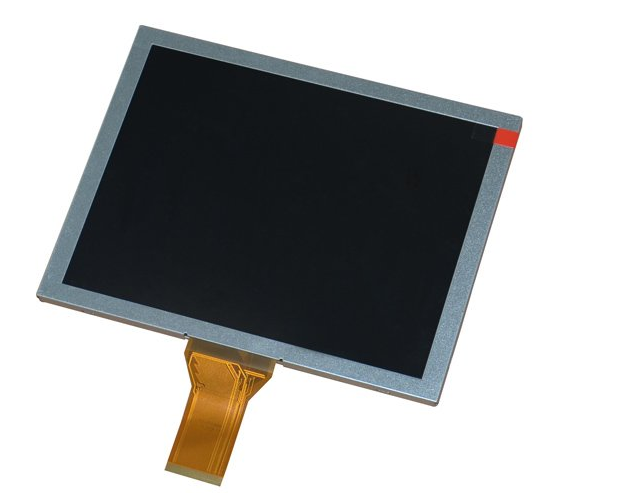

A typical LCD module consists of the following components:

1. Liquid Crystal Panel: This is the heart of the module. Its core consists of two parallel glass substrates, with liquid crystal molecules embedded in between.

Applying different voltages changes the alignment of the liquid crystal molecules, thereby controlling the amount of backlight light passing through.

2. Backlight Unit: Liquid crystal molecules do not emit light on their own and require an additional light source. The backlight unit typically consists of LED strips,

a light guide plate, a diffuser, and a brightness enhancement film, providing a uniform, high-brightness backlight.

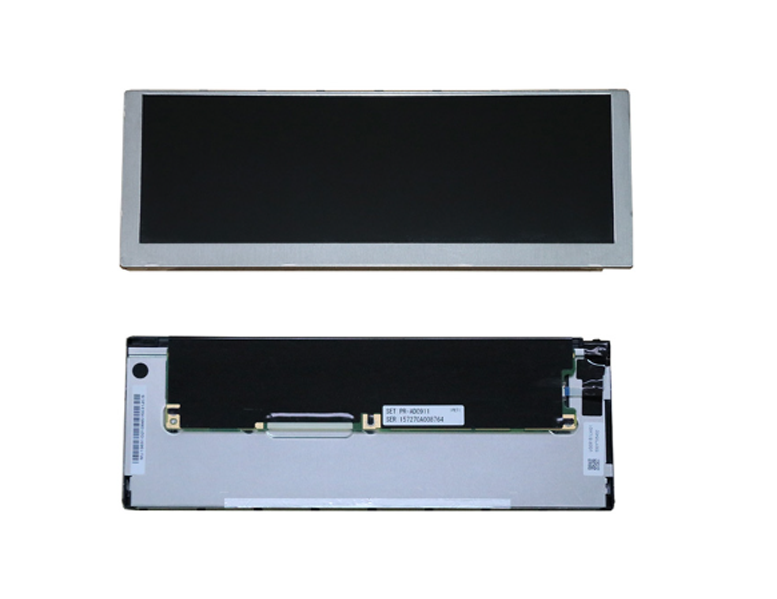

3. Driver Circuit:

* Driver IC: Typically bonded to the glass substrate in a COF or COG configuration, it receives signals and precisely controls the voltage at each pixel.

* PCB: Carries components such as the timing controller (TCON) and power management chip, serving as the hub for signal and power distribution.

4. Connection interfaces: These include common LVDS, eDP, and MIPI interfaces, used to connect to the motherboard and receive video data and commands.

5. Metal or plastic bezel and chassis: These provide mechanical support and protection for all precision components, ensuring structural stability and airtightness.

The operating principle can be summarized as follows: The driver circuit generates precise control voltages based on the received image signal and applies them to

each pixel electrode in the LCD panel. This voltage change causes the liquid crystal molecules to deflect, altering their light transmittance. White light from the

backlight unit passes through these precisely controlled "small gates" (pixels) and then through the top layer of color filters, ultimately mixing the colors into the

vibrant image we see.

Based on the display technology, LCD modules are primarily categorized as follows:

* TN (Twisted Nematic): Low cost and fast response, but with narrow viewing angles and poor color quality. Early on, it was primarily used in low-end monitors.

* VA (Vertical Alignment): High contrast and better color performance than TN, but with a slightly slower response time. It is commonly used in mid- to high-end TVs.

* IPS (In-Plane Switching): Offering excellent viewing angles and accurate color reproduction, it is the mainstream technology in current smartphones, high-end

monitors, and TVs. Its derivative technologies (such as AHVA and PLS) have further improved performance.

In addition, OLED (Organic Light-Emitting Diode) display modules have become a key development direction in the high-end market due to their self-luminous,

infinite contrast ratio, and flexible design. However, their structure is fundamentally different from LCMs.

The quality of an LCD module is primarily evaluated based on the following parameters:

* Resolution: The number of pixels on the screen (e.g., 1920x1080) determines the detail of the image. * Brightness: Measured in nits. Higher values indicate greater

 clarity in bright sunlight.

* Contrast: The ratio of brightest to darkest pixels, affecting the depth and clarity of the image.

* Color Gamut: The range of displayed colors, such as sRGB and DCI-P3. Higher values result in richer and more vibrant colors.

* Refresh Rate: The number of times a screen refreshes per second (Hz). A higher refresh rate provides a smoother visual experience, especially in games and videos.

* Response Time: The speed at which a pixel switches color (ms). A shorter response time reduces motion artifacts.

LCD modules are ubiquitous, encompassing consumer electronics (mobile phones, tablets, TVs), industrial control (HMIs, medical devices), automotive displays

(central control screens, instrument clusters), public information displays (advertising machines, kiosks), and virtually all other areas requiring visual feedback

for human-computer interaction.

Summary

LCD modules are the culmination of optical, semiconductor, materials, and electronic engineering technologies, serving as the bridge that transforms digital signals

into visual information. Although newer display technologies continue to emerge, LCD modules will remain the absolute main force in the display field in the

foreseeable future due to their mature technology, stable performance and huge cost advantages.
