Short Guide about Different LCD Screen Shapes: Round, Triangular, Bar, and Square

LCD (Liquid Crystal Display) technology has evolved to accommodate various form factors, each designed to meet specific application requirements. This guide explores four distinctive LCD screen shapes—round, triangular, bar, and square—detailing their unique characteristics, manufacturing considerations, and primary applications across industries.

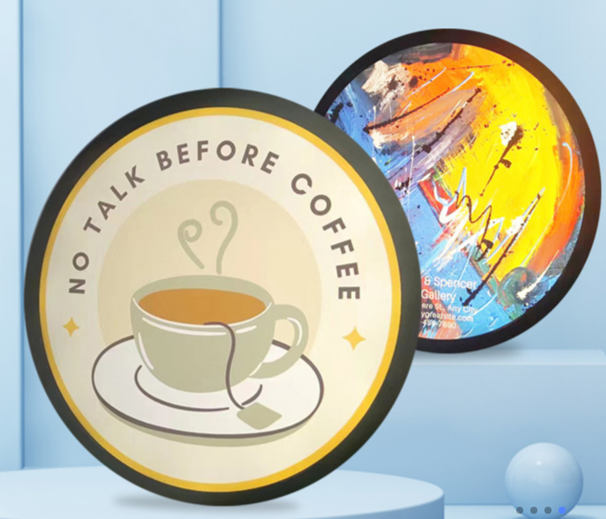

1. LCD Round Screens

Overview:

Circular LCD displays break from traditional rectangular formats to offer distinctive aesthetic and functional advantages. These screens require specialized manufacturing processes to arrange pixels in a radial pattern while maintaining image integrity.

Technical Features

- Aspect Ratio:Typically 1:1 (diameter-based)

- Resolution Challenges: Pixel mapping requires custom controllers

- Viewing Angles: 160-178° (comparable to standard LCDs)

- Touch Options:Capacitive or resistive touch variants available

Key Applications

1. Wearable Technology

   - Smartwatches (e.g., Samsung Galaxy Watch, Garmin series)

   - Fitness trackers with circular displays

   - Medical monitoring devices

2. Automotive Interfaces

   - Digital instrument clusters

   - Center console displays

   - Rearview camera monitors

3. Industrial Equipment

   - Process control gauges

   - Machinery status indicators

   - Test and measurement devices

4. Consumer Electronics

   - Smart home controllers

   - Kitchen appliance interfaces

   - Premium audio equipment displays

Advantages

- Ergonomic for wrist-worn devices

- Space-efficient in dashboard applications

- Distinctive visual appeal for product differentiation

Limitations

- Higher production costs than standard shapes

- Limited content optimization for circular format

- Reduced usable area compared to rectangular screens

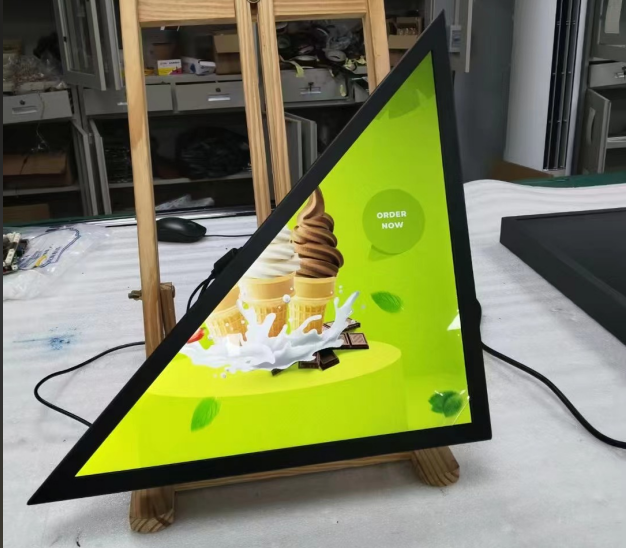

2. LCD Triangular Screens

Overview

Triangular LCDs represent a niche but growing segment, offering solutions for space-constrained or geometrically specific applications. These displays require careful pixel arrangement to maintain image quality across angular dimensions.

Technical Features

- Aspect Ratios: Varies by triangle type (equilateral, isosceles, etc.)

- Pixel Density: Typically 200-300 PPI

- Viewing Angles:150-170°

- Customization:Available in various triangle configurations

Key Applications

1. Automotive Displays

   - Angled dashboard information panels

   - Heads-up display components

   - Mirror-integrated screens

2. Industrial Control Systems

   - Equipment status indicators

   - Warning system displays

   - Compact monitoring interfaces

3. Digital Signage

   - Architectural video walls

   - Interactive kiosk elements

   - Artistic installations

4. Specialized Equipment

   - Aviation instrumentation

   - Medical imaging devices

   - Military display systems

Advantages

- Optimal for unconventional spaces

- Enhanced visual impact in design applications

- Improved information segmentation potential

Limitations

- Significant development costs

- Limited supplier availability

- Content adaptation challenges

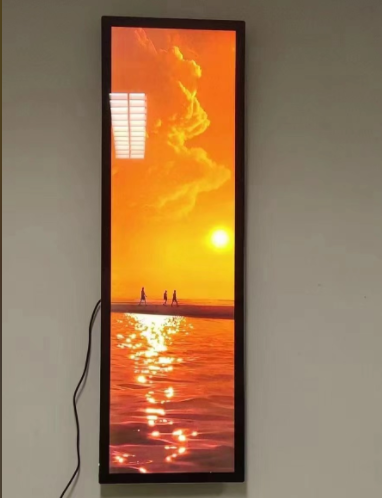

3. LCD Bar Screens

Overview

Bar-type LCDs, characterized by their elongated rectangular form, provide ideal solutions for information display in constrained spaces. These displays are commonly used where horizontal or vertical information flow is prioritized.

Technical Features

- Aspect Ratios: Ranging from 4:1 to 16:1

- Orientation: Available in horizontal or vertical configurations

- Brightness:Typically 300-1000 nits for outdoor visibility

- Touch Options: Resistive touch common for industrial use

Key Applications

1. Transportation Systems

   - Bus and train arrival displays

   - Airport information boards

   - Highway message signs

2. Retail Environments

   - Electronic shelf labels

   - Digital price tags

   - Promotional tickers

3. Industrial Applications

   - Production line monitoring

   - Equipment status displays

   - Process control indicators

4. Consumer Electronics

   - Appliance control panels

   - Audio equipment displays

   - Fitness machine interfaces

Advantages

- Excellent for scrolling or sequential information

- Space-saving design

- High visibility in public spaces

Limitations

- Limited vertical resolution in horizontal formats

- Restricted multimedia capabilities

- Potential readability issues at extreme angles

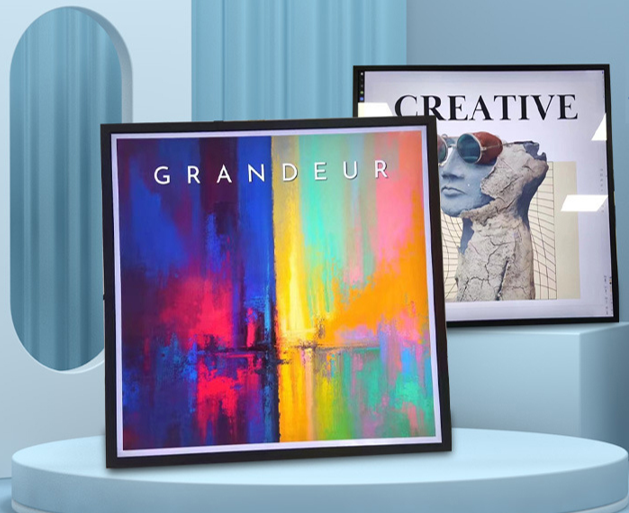

4. LCD Square Screens

Overview

Square LCDs maintain a balanced aspect ratio that makes them versatile for numerous applications. This format remains the industry standard for many electronic devices due to its compatibility with most content formats.

Technical Features

- Aspect Ratio: 1:1 standard (other ratios available)

- Resolution Options: From QVGA to 4K

- Viewing Angles: Up to 178°

- Technology Variants: IPS, TN, VA, and OLED options

Key Applications

1. Mobile Devices

   - Smartphone secondary displays

   - Tablet interfaces

   - Portable gaming systems

2. Point-of-Sale Systems

   - Cash register displays

   - Self-service kiosks

   - Payment terminals

3. Medical Equipment

   - Patient monitoring screens

   - Diagnostic imaging displays

   - Surgical equipment interfaces

4. Industrial Controls

   - Machine operation panels

   - Test equipment displays

   - Process monitoring screens

Advantages

- Universal content compatibility

- Cost-effective manufacturing

- Wide supplier availability

- Established design standards

Limitations

- Less space-efficient than specialized shapes

- Limited differentiation potential

- Not optimal for all application spaces

Selection Considerations

When choosing an LCD screen shape, consider:

1. Space Constraints: Unusual spaces may require round or triangular displays

2. Content Type: Text-heavy applications favor bar displays; multimedia works best on square

3. User Interface: Touch requirements may dictate shape options

4. Budget Factors: Custom shapes increase development and production costs

5. Environmental Conditions: Outdoor use may favor certain form factors

Future Trends

- Increased adoption of round screens in IoT devices

- Development of flexible triangular displays for foldable applications

- Higher-resolution bar screens for advanced signage

- Square screens evolving with improved aspect ratio flexibility

This comprehensive overview demonstrates how each LCD screen shape serves distinct market needs, with selection dependent on specific application requirements,

budget considerations, and design objectives.
