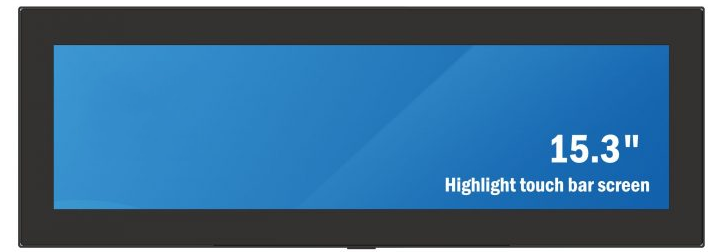

bar touch lcd module introduction

Bar-type touch LCD modules are specialized rectangular displays designed for applications requiring a wide, narrow screen area. They feature unique

resolutions like 480x128 or 480x1280 and support various interfaces and touch technologies.

Here is a comparison of several specific bar-type LCD modules to give you a clearer picture:

 Key Technical Aspects to Consider

When selecting a bar touch LCD module, paying attention to a few technical details will ensure it works well in your project.

· Interface Types: The connection interface is crucial for compatibility with your main control board.

  · Display Interfaces: Common options include RGB (for processors with built-in LCD controllers), MIPI (for high-speed data transmission in modern

devices), and SPI (simple but slower, suitable for smaller displays).

  · Touch Interfaces: I²C is the most common interface for capacitive touchscreens. Some resistive touchscreens may use SPI or even USB/RS232

interfaces when they include a separate controller board.

· Touch Technologies: The choice between touch technologies affects the user experience.

  · Capacitive Touch (PCAP): Supports multi-touch, offers high clarity and durability. It's responsive to finger touch but may not work with gloves

without special configurations.

  · Resistive Touch: Often single-touch, requires slight pressure. It can be activated by a finger, gloved hand, or stylus, making it robust for certain

industrial environments.

· Getting Started with Development: If you're planning to prototype, modules from brands like Waveshare or LILYGO often provide extensive

resources. For instance, Waveshare offers sample programs for platforms like Raspberry Pi and Arduino, which include detailed wiring diagrams

and code to get you started quickly. The LILYGO T-Display Bar is an all-in-one solution that integrates an ESP32-S3 microcontroller, a bar-type

display, and sensors, which is excellent for IoT projects.

 How to Choose the Right Module

To make the best choice, align the module's specifications with your project's core requirements by considering the following:

· Define Must-Have Specifications: Start by determining the non-negotiable requirements for your application, such as the exact dimensions that

will fit your enclosure, the minimum brightness needed for your operating environment, and the required operating temperature range.

· Match the Interface to Your Main Controller: Check what display and touch interfaces your main processor (e.g., STM32, ESP32, Raspberry Pi)

supports. There's no benefit in choosing a module with an MIPI interface if your hardware only supports RGB or SPI.

· Prioritize Developer Support: For hobbyists or those on a tight deadline, choosing a module from a supplier that provides good documentation,

wiring guides, and sample code (like Waveshare or DFRobot) can significantly speed up development and troubleshooting.

I hope this introduction helps you understand the key aspects of bar touch LCD modules. What kind of project are you planning to use it for?

Knowing the application might help in offering more specific suggestions.
